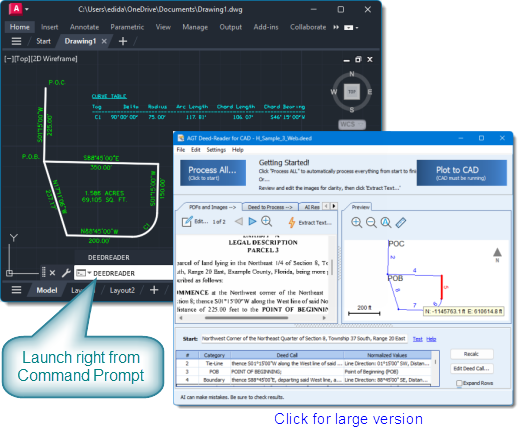

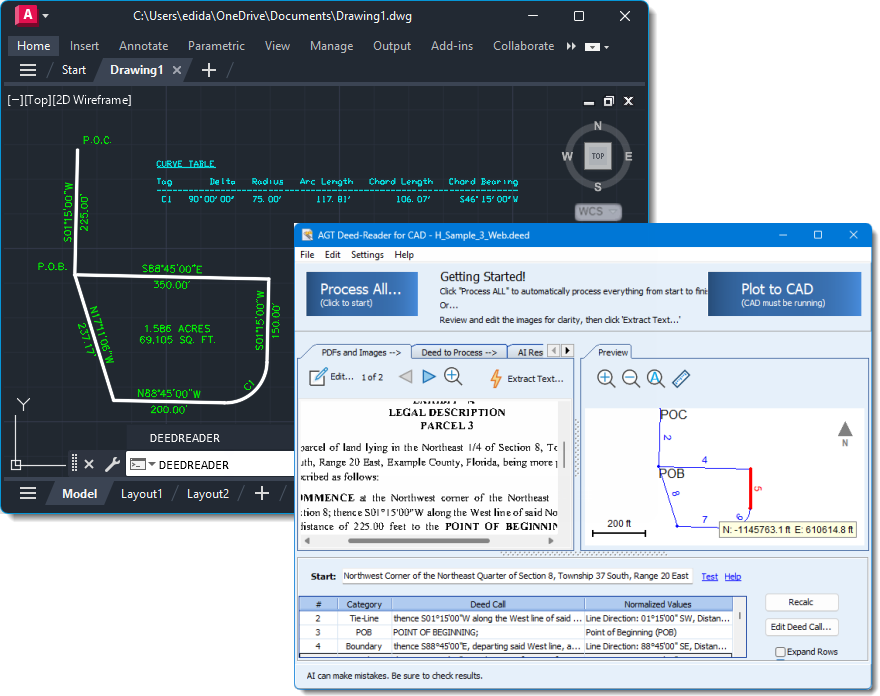

"AI" Deed-Reader for AutoCAD and Civil 3D

Load a PDF, Word file, or scanned image into our Deed-Reader and plot the parcel directly into your AutoCAD or Civil 3D drawing... in seconds!

AI reads the legal description and pulls out bearings, distances, and curves so you don't' have to enter them by hand.

Extensive plotting options give you complete control over format, text size, styles, layers, even curve and line table layout.

What it does

• Reads metes-and-bounds descriptions from PDF, Word, Text, and scanned image files.
• Extracts boundary lines and curves automatically with AI.
• Plots directly to AutoCAD and Civil 3D as native entities.
• Shows a plot preview and closure report so you can verify (and edit) before plotting.
• Can position parcels from a starting coordinate, or section corner call.

Highlights

• Runs as a command right inside of AutoCAD, no separate importing.
• Labels Point of Commencement and Point of Beginning.
• Plots annotations, area, and line and curve tables.
• Adjoining parcels can be plotted in the same drawing.
• Built on AGT's proven surveying software background.
• AGT is an "Authorized Autodesk Developer".

Click here to learn how it works.
